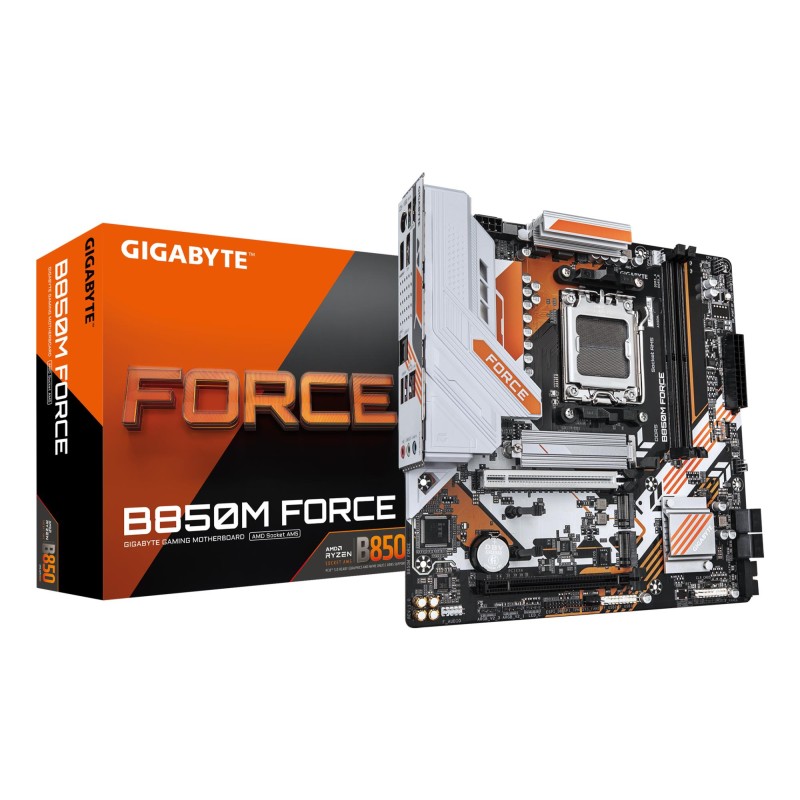

Mainboard|GIGABYTE|AMD B850|Socket AM5|micro ATX|RAM DDR5-SDRAM|2xSlots|3xNumber of M.2 (M) slots|B850M FORCE (Rev. 1.2)|B850MFO
AMD B850 | micro ATX | Audio 7.1 channels | CPU AMD | Socket Socket AM5 | Supported memory types DDR5-SDRAM | 2xNumber of memory slots | Memory slots type DIMM | Supported storage drive interfaces M.2,PCI Express 4.0,PCI Express 5.0,SATA III | 4096 x 2160 pixels | 2xUSB 2.0 ports quantity | 2xUSB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1xUSB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1xUSB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1xEthernet LAN (RJ-45) ports | 1xHDMI ports quantity | Weight 1.18 kg
123,94 €
AR PVN
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
- X3D Turbo Mode to unleash new era gaming performance
- AMD Socket AM5: Supports AMD Ryzen 9000/8000/ 7000 Series Processors
- Digital 8+2+2 phases VRM solution
- Dual Channel DDR5: 2*DIMMs with AMD EXPO Memory Module Support
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
- Fast Networking: 2.5GbE LAN
- Extended Connectivity: DP, HDMI
Specifikācijas
| Garantija | 36 |
|---|---|
| Summary | GIGABYTE B850M FORCE Motherboard - AMD Ryzen 9000 Series CPUs, 8+2+2 Phases Digital VRM, up to 9600MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0 M.2, 2.5 GbE LAN, USB 3.2 Gen 2. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor seri |
| Vendor Homepage | https://www.gigabyte.com/ |
| Category Code | MBA |
| Unit Box Height | 0.27 |
| Unit Box Length | 0.275 |
| Unit Box Width | 0.07 |
| CnCode | 84733020 |
| Weight & dimensions (Depth) | 244 mm |
| Weight & dimensions (Height) | 35 mm |
| Weight & dimensions (Width) | 244 mm |
| Unit Calculated Volume | 0.005197 cubm |
| Unit Calculated Weight | 1.2 kg |
| Model | B850M FORCE (Rev. 1.2) |
| Units per Shipping Box | 1 |
| Packaging data (Package depth) | 268 mm |
| Packaging data (Package height) | 68 mm |
| Packaging data (Package weight) | 1400 g |
| Packaging data (Package width) | 270 mm |
| Network (Wi-Fi) | No |
| Battery (Battery technology) | Lithium-Manganese Dioxide (LiMnO2) |
| Logistics data (Products per shipping (inner) case) | 1 pc(s) |
| Technical details (Warranty period) | 3 year(s) |
| Network (Ethernet interface type) | 2.5 Gigabit Ethernet |
| Features (Windows operating systems supported) | Windows 10 x64/Windows 11 x64 |
| Network (Ethernet LAN) | Yes |
| Packaging content (Batteries included) | Yes |
| Packaging content (Screws included) | Yes |
| Features (Product colour) | Dark brown |
| Battery (Battery weight) | 3 g |
| Features (Audio output channels) | 7.1 channels |
| Features (Component for) | PC |
| Features (Motherboard chipset) | AMD B850 |
| Features (Motherboard chipset family) | AMD |
| Features (Motherboard form factor) | micro ATX |
| Processor (Compatible processor series) | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor (Processor manufacturer) | AMD |
| Processor (Processor socket) | Socket AM5 |
| Memory (ECC сompatibility) | Non-ECC |
| Memory (Maximum internal memory) | 128 GB |
| Memory (Memory channels) | Dual-channel |
| Memory (Memory slots type) | DIMM |
| Memory (Number of memory slots) | 2 |
| Memory (Supported memory clock speeds) | 4400/4800/5200/5600/6000/6200/6400/6600/6666/6800/7000/7200/7600/7800/8000/8200/8400/8600/8800/9200/9600 MHz |
| Memory (Supported memory types) | DDR5-SDRAM |
| Memory (Unbuffered memory) | Yes |
| Storage controllers (Number of HDDs supported) | 4 |
| Storage controllers (Number of storage drives supported) | 7 |
| Storage controllers (Supported storage drive interfaces) | M.2,PCI Express 4.0,PCI Express 5.0,SATA III |
| Storage controllers (Supported storage drive types) | HDD & SSD |
| Internal I/O (12V power connector) | Yes |
| Internal I/O (ATX Power connector (24-pin)) | Yes |
| Internal I/O (CPU fan connector) | Yes |
| Internal I/O (EPS power connector (8-pin)) | Yes |
| Internal I/O (Front panel audio connector) | Yes |
| Internal I/O (Number of chassis fan connectors) | 2 |
| Internal I/O (Number of SATA III connectors) | 4 |
| Internal I/O (RGB LED pin header) | Yes |
| Internal I/O (TPM connector) | Yes |
| Internal I/O (USB 2.0 connectors) | 2 |
| Internal I/O (USB 3.2 Gen 1 (3.1 Gen 1) connectors) | 2 |
| Rear panel I/O ports (Ethernet LAN (RJ-45) ports) | 1 |
| Rear panel I/O ports (HDMI ports quantity) | 1 |
| Rear panel I/O ports (Headphone outputs) | 1 |
| Rear panel I/O ports (Line-in) | Yes |
| Rear panel I/O ports (Microphone in) | Yes |
| Rear panel I/O ports (PS/2 ports quantity) | 1 |
| Rear panel I/O ports (USB 2.0 ports quantity) | 2 |
| Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity) | 2 |
| Expansion slots (Number of M.2 (M) slots) | 3 |
| Expansion slots (PCI Express x16 (Gen 4.x) slots) | 1 |
| BIOS (BIOS memory size) | 256 Mbit |
| BIOS (BIOS type) | UEFI AMI |
| BIOS (Clear CMOS jumper) | Yes |
| Other features (Weight) | 1180 g |
| Features (Audio chip) | Realtek ALC897 |
| Memory (Supported memory clock speed (max)) | 9600 MHz |
| Graphics (HDCP) | Yes |
| Internal I/O (Number of CPU fan connectors) | 2 |
| Network (LAN controller) | Realtek RTL8125 |
| Processor (Supported processor sockets) | Socket AM5 |
| Graphics (Maximum resolution) | 4096 x 2160 pixels |
| Graphics (Parallel processing technology support) | Not supported |
| Rear panel I/O ports (HDMI version) | 2.1 |
| Features (Power source type) | ATX |
| Storage controllers (RAID levels) | 0/1/10/5 |
| Storage controllers (RAID support) | Yes |
| Graphics (DirectX version) | 12.0 |
| Internal I/O (Front panel connector) | Yes |
| Packaging content (Bundled software) | Norton Internet Security (OEM version) |
| Features (Cooling type) | Passive |
| Rear panel I/O ports (USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity) | 1 |
| Rear panel I/O ports (DisplayPort version) | 1.4 |
| Rear panel I/O ports (DisplayPorts quantity) | 1 |
| Expansion slots (PCI Express x16 (Gen 5.x) slots) | 1 |
| Expansion slots (1st M.2 highest PCI Express generation) | 5.0 |
| Expansion slots (1st M.2 largest key size) | 2280 |
| Expansion slots (2nd M.2 highest PCI Express generation) | 4.0 |
| Expansion slots (2nd M.2 largest key size) | 2280 |
| Internal I/O (Number of EPS power connectors (8-pin)) | 1 |
| Internal I/O (Number of RGB LED pin headers) | 4 |
| Internal I/O (Number of water pump connectors) | 2 |
| Expansion slots (3rd M.2 highest PCI Express generation) | 4.0 |
| Expansion slots (3rd M.2 largest key size) | 2280 |
| Features (PC health monitoring) | Fan/Temperature/Voltage/Water cooling |
| Memory (Maximum internal memory per slot) | 64 GB |
| BIOS (ACPI version) | 5.0 |
| BIOS (Desktop Management Interface (DMI) version) | 2.7 |
| BIOS (System Management BIOS (SMBIOS) version) | 2.7 |
| Battery (Battery type) | CR2032 |
| Logistics data (Country of origin) | China |
| Battery (Lithium weight per battery) | 0.07 g |
| Battery (Number of battery cells) | 1 |
| Rear panel I/O ports (USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity) | 1 |
