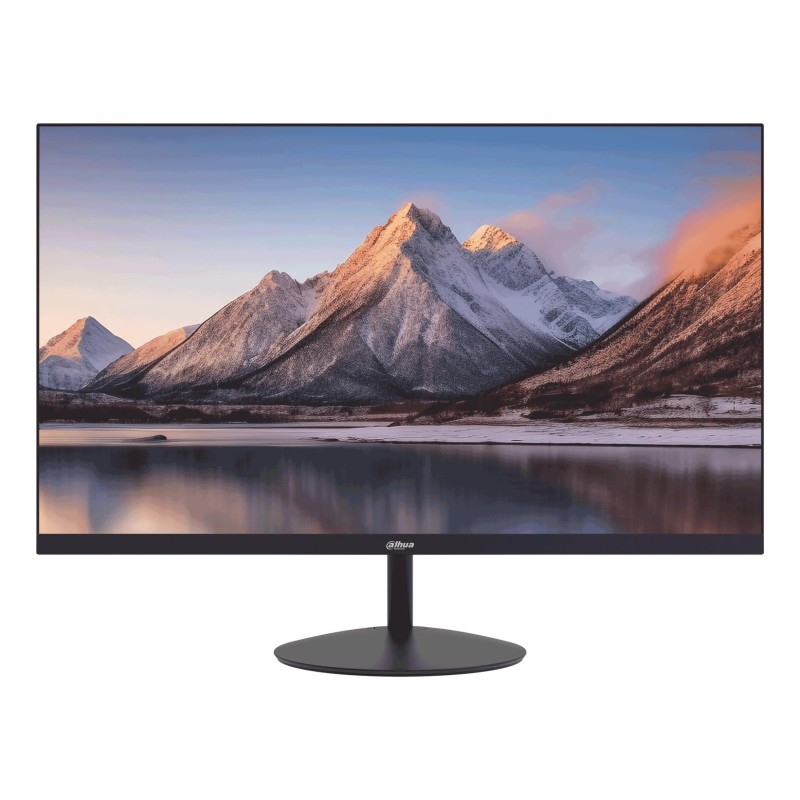

LCD Monitor|DAHUA|LM22-A200Y|21.45"|Panel VA|1920x1080|16:9|100Hz|10 ms|DHI-LM22-A200Y
21.45 " | 1920 x 1080 pixels | Full HD | 16:9 | LED | VA | 10 ms | Flat | Contrast 3000:1 | Maximum refresh rate 100 Hz | 1xHDMI ports quantity | VESA Yes
56,77 €
С НДС
- Ultra-narrow bezel , elegant appearance, plastic base
- 178°H/178°V extra-wide viewing angle for overall viewing performance
- High fidelity digital processing for a brilliant and vivid video
- Support multiple signal inputs such as HDMI, VGA
- 100Hz high refresh rate, eliminates picture lagging
Характеристики
| Garantija | 36 |
|---|---|
| Summary | Dahua Technology LM22-A200Y. Display diagonal: 54.5 cm (21.4"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 10 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178 , Viewing angle, vertical: 1 |
| Vendor Homepage | https://www.dahuasecurity.com/search/products?keyword DHI-LM22-A200Y |
| Category Code | LC3 |
| Unit Box Height | 0.37 |
| Unit Box Length | 0.6 |
| Unit Box Width | 0.1 |
| CnCode | 85285210 |
| Design (Product colour) | Black |
| Display (Colour depth) | 8 bit |
| Display (Contrast ratio (typical)) | 3000:1 |
| Display (Display diagonal) | 21.45 " |
| Display (Display resolution) | 1920 x 1080 pixels |
| Display (Maximum refresh rate) | 100 Hz |
| Display (Panel type) | VA |
| Energy Efficiency (Data Sheet (Link)) | https://eprel.ec.europa.eu/api/product/2139333/fiches?language EN |
| Energy Efficiency (Energy efficiency class) | E |
| Energy Efficiency (EPREL Registration Number) | 2139333 |
| Energy Efficiency (EPREL Version Number) | 1 |
| Model name | LM22-A200Y |
| Unit Calculated Volume | 0.0222 cubm |
| Product Net Weight | 2.05 kg |
| Unit Calculated Weight | 3.06 kg |
| Ports & interfaces (HDMI ports quantity) | 1 |
| Ports & interfaces (HDMI version) | 1.4 |
| Power (Power consumption (max)) | 16 W |
| Packaging data (Package type) | Box |
| Model | DHI-LM22-A200Y |
| Display (Screen shape) | Flat |
| Packaging data (Package depth) | 99 mm |
| Packaging data (Package height) | 366 mm |
| Packaging data (Package weight) | 2860 g |
| Packaging data (Package width) | 598 mm |
| Operational conditions (Operating relative humidity (H-H)) | 10 - 90 % |
| Operational conditions (Operating temperature (T-T)) | 0 - 40 C |
| Operational conditions (Storage temperature (T-T)) | -20 - 60 C |
| Ports & interfaces (VGA (D-Sub) ports quantity) | 1 |
| Display (Native aspect ratio) | 16:9 |
| Power (Power consumption (typical)) | 16 W |
| Operational conditions (Storage relative humidity (H-H)) | 5 - 90 % |
| Display (Backlight type) | Edge LED |
| Display (Display brightness (typical)) | 250 cd/m |
| Display (Display technology) | LED |
| Display (HD type) | Full HD |
| Display (Response time) | 10 ms |
| Display (Touchscreen) | No |
| Display (Viewing angle, horizontal) | 178 |
| Display (Viewing angle, vertical) | 178 |
| Multimedia (Built-in camera) | No |
| Multimedia (Built-in speaker(s)) | No |
| Ports & interfaces (Built-in USB hub) | No |
| Ports & interfaces (HDMI) | Yes |
| Ports & interfaces (Headphone out) | No |
| Ergonomics (Panel mounting interface) | 75 x 75 mm |
| Ergonomics (VESA mounting) | Yes |
| Power (AC adapter output voltage) | 12 V |
| Power (Energy consumption (SDR) per 1000 hours) | 15 kWh |
| Power (Energy efficiency class (HDR)) | Not available |
| Power (Energy efficiency class (SDR)) | E |
| Power (Power consumption (off)) | 0.1 W |
| Power (Power consumption (standby)) | 0.1 W |
| Power (Power supply type) | External |
| Weight & dimensions (Bezel width (bottom)) | 15.2 mm |
| Weight & dimensions (Bezel width (side)) | 3.3 mm |
| Weight & dimensions (Bezel width (top)) | 3.3 mm |
| Packaging content (Stand included) | Yes |
| Other features (Compliance certificates) | CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD) |
| Display (NTSC coverage (typical)) | 72 % |
| Display (Colour gamut standard) | NTSC |
| Display (Display diagonal (metric)) | 56 cm |
| Display (LED backlight) | Yes |
| Design (Feet colour) | Black |
| Ergonomics (Height adjustment) | No |
| Ergonomics (Tilt adjustment) | Yes |
| Ergonomics (Tilt angle range) | -5 - 15 |
| Ergonomics (Wall mountable) | Yes |
| Power (Energy efficiency scale) | A to G |
| Weight & dimensions (Depth (without stand)) | 41.2 mm |
| Weight & dimensions (Height (without stand)) | 284 mm |
| Weight & dimensions (Weight (without stand)) | 2050 g |
| Weight & dimensions (Width (without stand)) | 492.7 mm |
| Design (Detachable stand) | Yes |
| Packaging content (Power adapter included) | Yes |
| Design (Front bezel colour) | Black |
| Design (Frameless design) | Yes |
| Ergonomics (Plug and Play) | Yes |
| Power (Current rating) | 2 A |
| Other features (Mean time between failures (MTBF)) | 30000 h |
