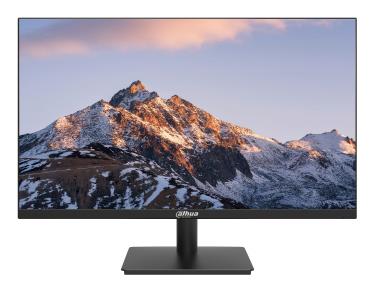

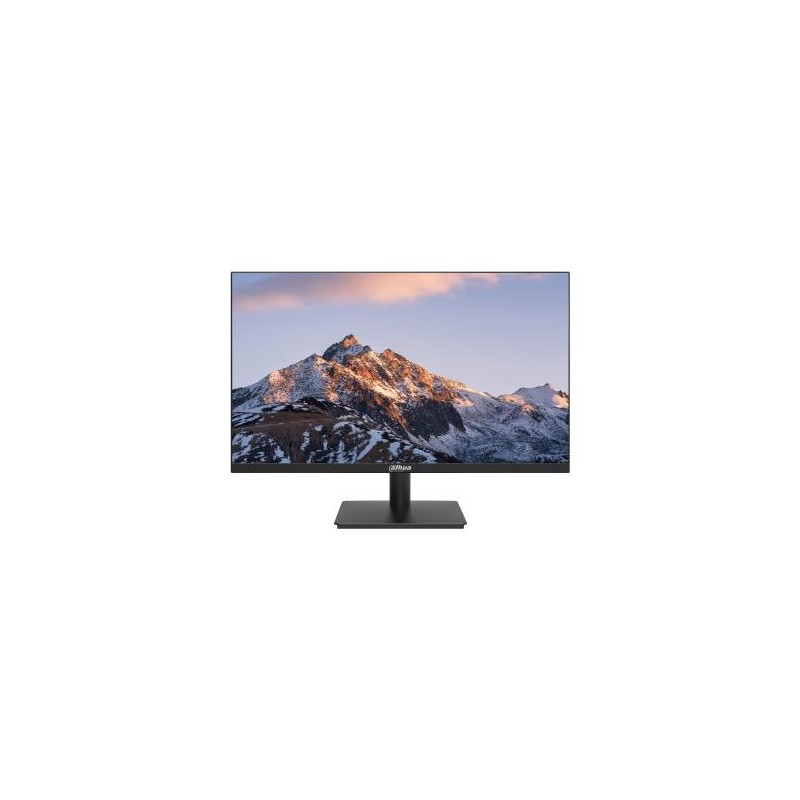

LCD Monitor|DAHUA|23.8 "|1920 x 1080 pixels|Full HD|Native aspect ratio 16:9|LED|Flat|DHI-LM24-A221Y
23.8 " | 1920 x 1080 pixels | Full HD | 16:9 | LED | IPS | Flat | Contrast 1200:1 | Maximum refresh rate 144 Hz | Pixel pitch 0.2745 x 0.2745 mm | 1xHDMI ports quantity | VESA Yes
€65.41
Tax included
- Light and cost-effective plastic housing
- Ultra-narrow bezel , elegant appearance, plastic base
- Support multiple signal inputs such as HDMI, VGA
- 144Hz high refresh rate
- 1ms rapid response time
Specifications
| Garantija | 36 |
|---|---|
| Summary | Dahua Technology LM24-A221Y. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Native aspect ratio: 16:9, Viewing angle, horizontal: 178 , Viewing angle, vertical: 178 . VESA mounting. Pr |
| Vendor Homepage | https://www.dahuasecurity.com/fr/products/All-Products/Display--Control/Monitors/Commercial-Series/LM24-A221Y V1 |
| Category Code | LC3 |
| Unit Box Height | 0.41 |
| Unit Box Length | 0.605 |
| Unit Box Width | 0.12 |
| CnCode | 85285210 |
| Design (Product colour) | Black |
| Display (Colour depth) | 6 bit |
| Display (Contrast ratio (typical)) | 1200:1 |
| Display (Display diagonal) | 23.8 " |
| Display (Display resolution) | 1920 x 1080 pixels |
| Display (Maximum refresh rate) | 144 Hz |
| Display (Panel type) | IPS |
| Display (Pixel density) | 92.56 ppi |
| Network (Bluetooth) | No |
| Packaging content (Cables included) | HDMI |
| Packaging content (Quick start guide) | Yes |
| Energy Efficiency (Data Sheet (Link)) | https://eprel.ec.europa.eu/api/product/2452512/fiches?language EN |
| Energy Efficiency (Energy efficiency class) | D |
| Energy Efficiency (EPREL Registration Number) | 2452512 |
| Energy Efficiency (EPREL Version Number) | 2 |
| Unit Calculated Volume | 0.02977 cubm |
| Product Net Weight | 2.8 kg |
| Unit Calculated Weight | 4 kg |
| Ports & interfaces (HDMI ports quantity) | 1 |
| Ports & interfaces (HDMI version) | 1.4 |
| Performance (NVIDIA G-SYNC) | No |
| Power (Power consumption (max)) | 22 W |
| Display (Screen shape) | Flat |
| Packaging data (Package depth) | 120 mm |
| Packaging data (Package height) | 412 mm |
| Packaging data (Package weight) | 3900 g |
| Packaging data (Package width) | 602 mm |
| Packaging content (Manual) | Yes |
| Performance (AMD FreeSync) | No |
| Network (Wi-Fi) | No |
| Operational conditions (Operating relative humidity (H-H)) | 10 - 85 % |
| Operational conditions (Operating temperature (T-T)) | 0 - 40 C |
| Operational conditions (Storage temperature (T-T)) | -20 - 60 C |
| Ports & interfaces (VGA (D-Sub) ports quantity) | 1 |
| Display (Native aspect ratio) | 16:9 |
| Power (Power consumption (typical)) | 21.2 W |
| Operational conditions (Storage relative humidity (H-H)) | 5 - 90 % |
| Display (Backlight type) | Edge LED |
| Display (Display brightness (typical)) | 250 cd/m |
| Display (Display technology) | LED |
| Display (HD type) | Full HD |
| Display (Touchscreen) | No |
| Display (Viewing angle, horizontal) | 178 |
| Display (Viewing angle, vertical) | 178 |
| Multimedia (Built-in camera) | No |
| Multimedia (Built-in speaker(s)) | No |
| Design (Market positioning) | Office |
| Ports & interfaces (Built-in USB hub) | No |
| Ports & interfaces (HDMI) | Yes |
| Ergonomics (Panel mounting interface) | 100 x 100 mm |
| Ergonomics (VESA mounting) | Yes |
| Power (AC adapter output voltage) | 12 V |
| Power (Energy consumption (SDR) per 1000 hours) | 13 kWh |
| Power (Energy efficiency class (HDR)) | Not available |
| Power (Energy efficiency class (SDR)) | D |
| Power (Power consumption (off)) | 0.3 W |
| Power (Power consumption (standby)) | 0.5 W |
| Power (Power supply type) | External |
| Weight & dimensions (Bezel width (bottom)) | 16.8 mm |
| Weight & dimensions (Bezel width (side)) | 3.6 mm |
| Weight & dimensions (Bezel width (top)) | 2.3 mm |
| Weight & dimensions (Depth (with stand)) | 189 mm |
| Weight & dimensions (Height (with stand)) | 418.3 mm |
| Weight & dimensions (Width (with stand)) | 542.1 mm |
| Packaging content (Stand included) | Yes |
| Other features (Compliance certificates) | CE/Electromagnetic Compatibility (EMC)/Low Voltage Directive (LVD) |
| Display (NTSC coverage (typical)) | 72 % |
| Display (Colour gamut standard) | NTSC |
| Display (Display diagonal (metric)) | 61 cm |
| Display (LED backlight) | Yes |
| Display (Pixel pitch) | 0.2745 x 0.2745 mm |
| Display (Response time (MPRT)) | 1 ms |
| Display (Viewable size, horizontal) | 527.04 mm |
| Display (Viewable size, vertical) | 296.46 mm |
| Performance (Flicker-free technology) | Yes |
| Design (Feet colour) | Black |
| Ergonomics (Tilt adjustment) | Yes |
| Ergonomics (Tilt angle range) | -5 - 20 |
| Ergonomics (Wall mountable) | Yes |
| Power (Energy efficiency scale) | A to G |
| Weight & dimensions (Depth (without stand)) | 47.6 mm |
| Weight & dimensions (Height (without stand)) | 322.4 mm |
| Weight & dimensions (Weight (without stand)) | 2800 g |
| Weight & dimensions (Width (without stand)) | 542.1 mm |
| Packaging content (Power adapter included) | Yes |
| Display (Surface hardness) | 3H |
| Design (Front bezel colour) | Black |
| Ergonomics (Plug and Play) | Yes |
| Display (Haze rate) | 25 % |
| Display (Supported graphics resolutions) | 1920 x 1080 (HD 1080) |
| Display (Supported video modes) | 1080p |
| Design (Illuminated stand) | No |
| Other features (Automatic brightness control) | No |
| Ergonomics (LED indicators) | Status |
